The Best Dealer for the Printing Industry in Bangalore

Media Support KODAK SONORA NEWS Process Free Plates, THERMALNEWS SP Digital Plates3 , TRILLIAN SP Thermal Plates3 , ELECTRA MAX Thermal Plates, ELECTRA XD Thermal Plates, ACHIEVE EM Thermal Plates, and CAPRICORN GT Thermal Plates Performance Specifications Throughput at 1200 dpi for broadsheet (320 x 700 mm) / panorama plate sizes (890 x 700 mm) Standard, Auto Unload, Autoloader, SCU and MCU: F speed = 54 / 25 plates per hour Repeatability ± 10 microns between two consecutive exposures on the same plate left on the drum Accuracy ± 40 microns between two plates imaged by different ACHIEVE Platesetters Workflow Connectivity Standard KODAK Print Console with TIFF Downloader Software included; connects to most third-party workflow systems Imaging Specifications Resolution • 1200 dpi standard Screening • 200 lpi max line screen standard • Optional: 36-micron KODAK STACCATO Screening Maximum plate size: around x along drum1 • Single wide (broadsheet): 27.5591“ x 17.7165“ (700 x 450 mm) • Double wide (panorama): 27.5591“ x 38.7795“ (700 x 985 mm) • 2L Option: 32.9921“ x 44.0157“ (838 x 1,118 mm) Minimum plate size: around x along drum1 Standard: Single wide: 10.5118“ x 8.4646“ (267 x 215 mm) Double wide: 10.5118“ x 17.7559“ (267 x 451 mm) Auto Unload, SCU, Autoloader: Single wide: 12.9921“ x 10.6299“ (330 x 270 mm)2 Double wide: 12.9921“ x 17.7559“ (330 x 451 mm)2 Manual Load and Unload: 12.0079“ x 8.4646“ (305 x 215 mm) Maximum image area: around x along drum 27.5591“ x 38.7795“ (700 x 985 mm) (32.9921“ x 44.0157“ (838 x 1,118 mm) with 2L Optio

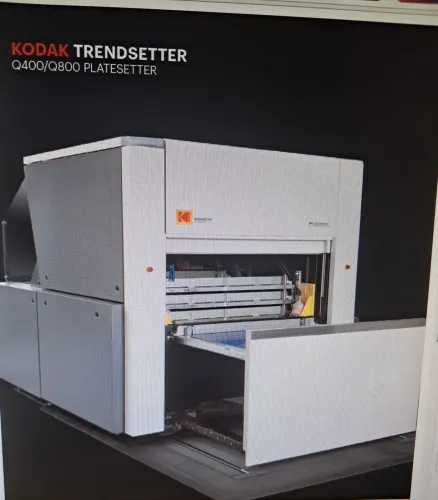

FeatureQ400 PlatesetterQ800 PlatesetterMax. Plate Size267 × 394 mm up to 450 × 625 mm305 × 305 mm up to 838 × 1,143 mmThroughput (at 2400 dpi)Up to 43 plates per hourUp to 41 plates per hour (Standard Auto Unload)Imaging Technology830 nm thermal external drum with SquareSpot830 nm thermal external drum with SquareSpotResolutions1200 dpi and 2400 dpi standard (UHR model goes up to 12,800 dpi)1200 dpi and 2400 dpi standard (UHR model goes up to 12,800 dpi)Registration Accuracy± 5 microns between exposures± 5 microns between exposuresAutomation LevelsSemi-automatic, Auto Unload, AutoloaderSemi-automatic, Auto Unload, Autoloader, MCU/SCU

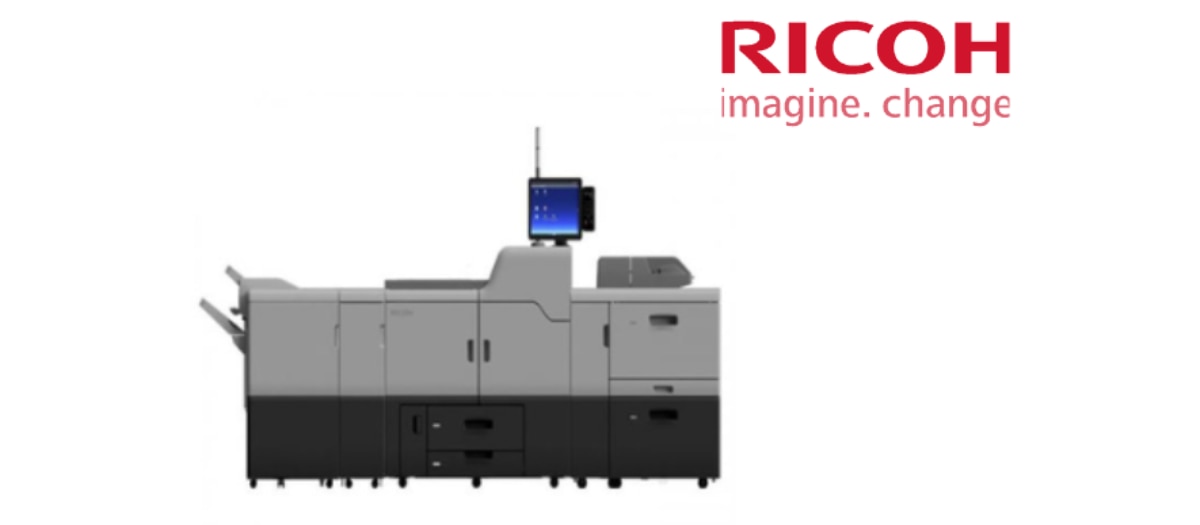

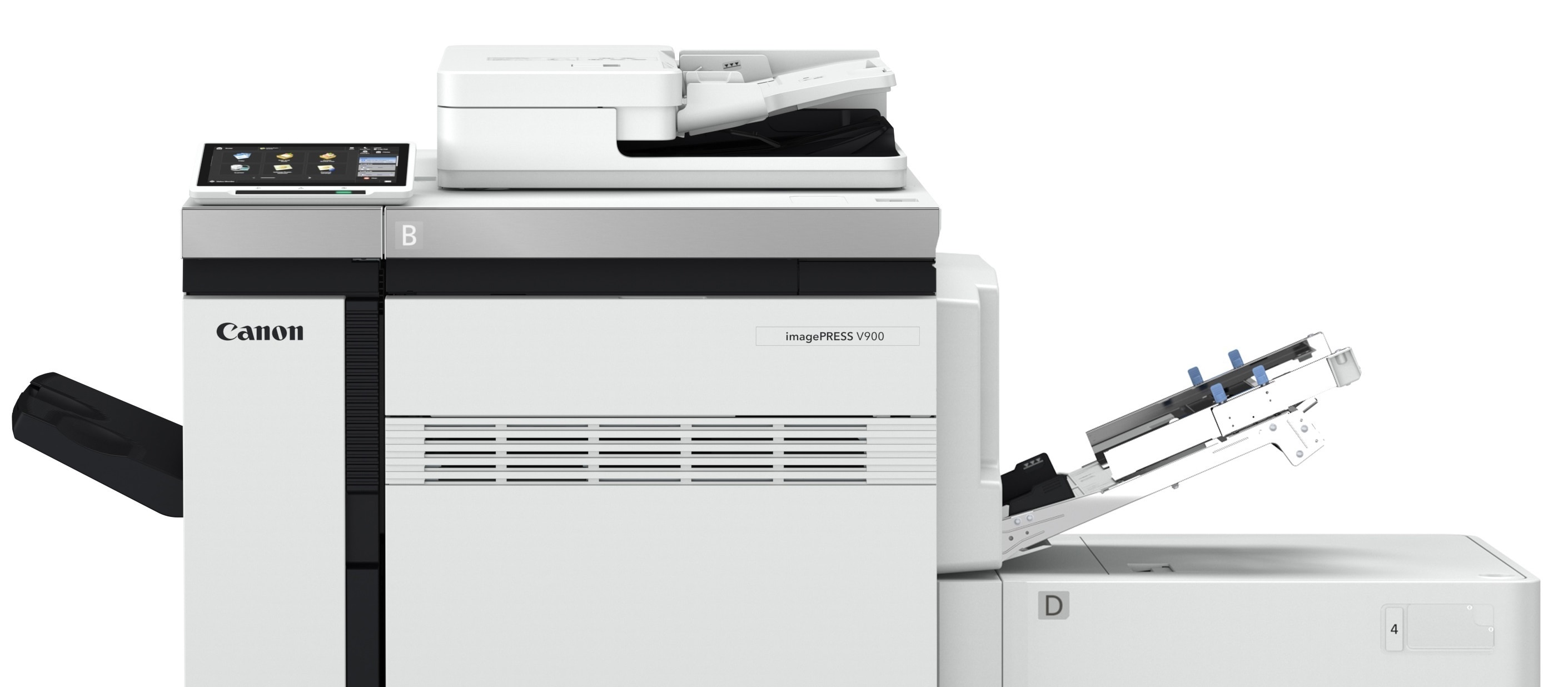

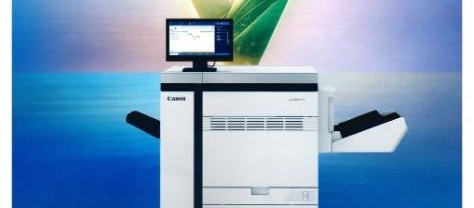

Machine Type Digital Colour Cut-sheet Press Core Functions Print, Copy, Scan, Send, Store Processor Speed 1.8 GHz, 1.3 GHz Dual Control Panel 25.65cm (10.1in) Memory 6GB Interface Connection NETWORK Network Protocols Standard: 1000Base-T/100Base-TX/10Base-T Paper Input (Standard) Standard: 1 100 sheets 550 sheet Paper Cassette x 2 Maximum: 11 100 sheets Engine 550 x 2, Multi-drawer Deck (1 500 + 1 500 + 2000) x 2 Paper Supply Capacity (A4, 80 g/m²) 11 100 sheets Finishing Capabilities Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch (multiple patterns), Document Insertion, Fold (C-, Z-, Half, Double parallel, Accordion-Z fold), Trimming Supported Media Types Thin (52-63g/m²), Plain (64-105g/m²), Recycled, Colour, Thick (106-400g/m²), Coated (70-400g/m²), Embossed, Bond, Transparency, Label, Pre Punched, Letterhead, Index, Transparent film, Translucent film, Envelope, Synthetic, Magnetic Supported Media Sizes A3S, B4S, A4L, A4S, B5S, B5L, A5S, A5L, A6S, SRA3S, 27.94 x 43.18cm (11 x 17in) S, LGLS, LTRL, LTRS, EXE_L, STMTS, 30.48 x 45.72cm (12 x 18in) S, 33.02 x 48.26cm (13 x 19in) S, 8KS, 16KL, 16KS, Envelope, Custom size (Cross track: 100~330.2mm, In track: 148~487.7mm), Long Sheet (210.0 x 487.8 - 330.2 x 1 300.0mm)
