Throughput at 2400 dpi2,3 plates per hour (pph) S speed = 22 pph F speed = 28 pph For plate size 724 x 838 mm S speed = 16 pph F speed = 22 pph For plate size 1030 x 838 mm Repeatability ± 5 microns between two consecutive exposures on the same plate left on the drum Accuracy ± 20 microns between two plates imaged on the same device Registration ± 25 microns between image and plate edge Workflow connectivity Standard KODAK Print Console with TIFF Downloader Software included; connects to KODAK PRINERGY Workflow and most third-party workflow systems. The optional KODAK Mobile CTP Control App lets you monitor CTP devices from your mobile device. Imaging specifications T400 Plate setter . Resolution 2400 dpi or 1200 dpi Screening 200 lpi max line screen; Optional: 36-micron KODAK STACCATO Screening Maximum plate size: around x along drum4 838 x 990 mm5 Standard: 838 x 1,143 mm5 Auto Unload/Autoloader: 838 x 1,118 mm Minimum plate size: around x along drum4 Standard: 267 x 215 mm Auto Unload/Autoloader: 330 x 270 mm6 Standard: 267 x 215 mm Auto Unload/Autoloader: 330 x 270 mm6 Maximum image area: around x along drum 827.9 x 990 mm Standard: 827.9 x 1,143 mm Auto Unload/Autoloader: 827.9 x 1,118 m

FeatureQ400 PlatesetterQ800 PlatesetterMax. Plate Size267 × 394 mm up to 450 × 625 mm305 × 305 mm up to 838 × 1,143 mmThroughput (at 2400 dpi)Up to 43 plates per hourUp to 41 plates per hour (Standard Auto Unload)Imaging Technology830 nm thermal external drum with SquareSpot830 nm thermal external drum with SquareSpotResolutions1200 dpi and 2400 dpi standard (UHR model goes up to 12,800 dpi)1200 dpi and 2400 dpi standard (UHR model goes up to 12,800 dpi)Registration Accuracy± 5 microns between exposures± 5 microns between exposuresAutomation LevelsSemi-automatic, Auto Unload, AutoloaderSemi-automatic, Auto Unload, Autoloader, MCU/SCU

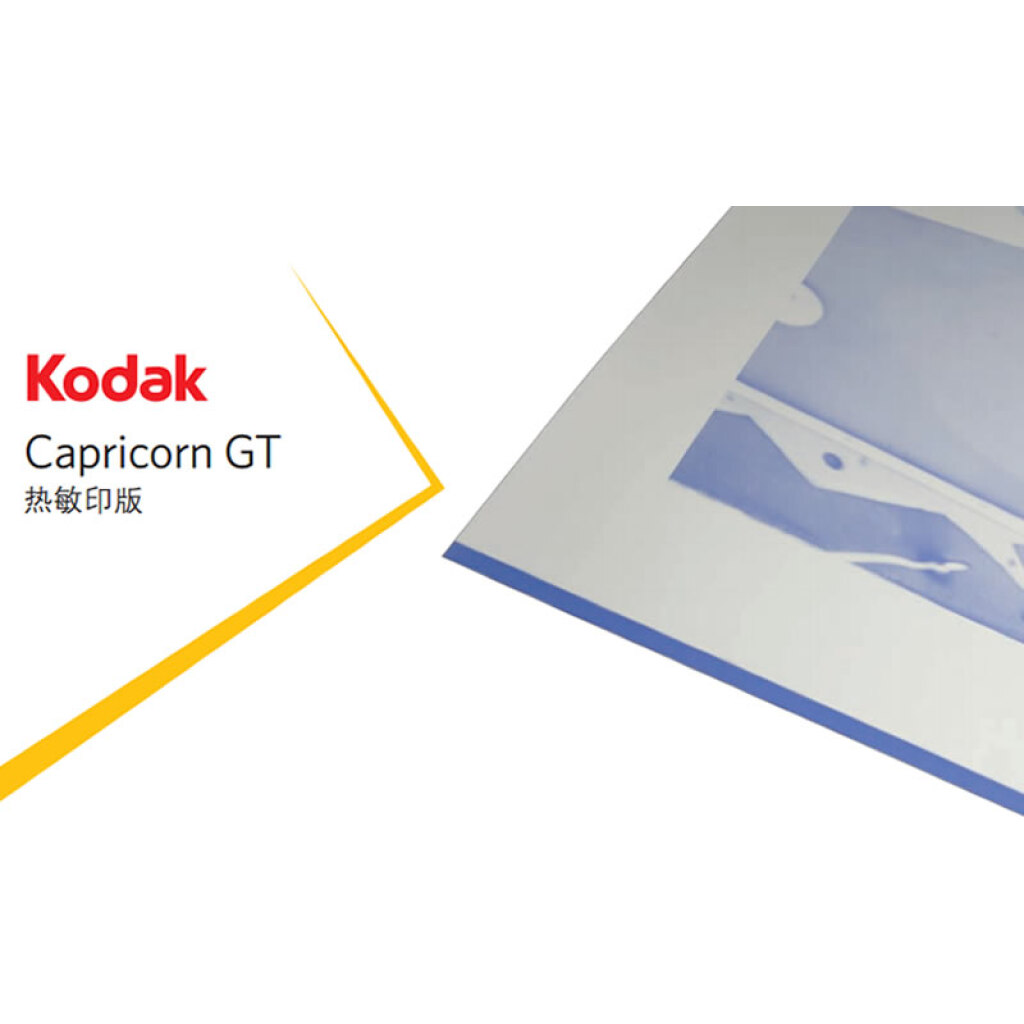

The KODAK Capricorn GT Thermal Plate is a dependable positive-working thermal CTP (Computer-to-Plate) printing plate designed for commercial offset printing. It offers an excellent balance of print quality, durability, and affordability, making it an ideal choice for print businesses seeking reliable performance while maintaining cost efficiency. specifications; Run Length: Up to 75,000 impressions unbaked; significantly higher when baked for harsh printing environments.Imaging Resolution: Supports up to 200 lpi standard AM screening, and capable of handling 36-micron KODAK STACCATO Screening for FM applications.Run Speed: When used with KODAK ACHIEVE News Platesetters, it achieves imaging speeds of up to 54 broadsheet plates per hour (at 1200 dpi).Accuracy & Repeatability: ±10-micron repeatability between exposures; ±40-micron accuracy across plates imaged on different platesetters.Processing Compatibility: Accredited for use with standard equipment like the KODAK T-MDE Plate Processor and T-HDE Series processors

Plate Positive working, thermal digital plate with wide operating latitude; optional postbake for extremely long runs, though, required for optimal resistance to aggressive press chemistry such as UV inks and blanket washes Application High quality medium- to long-run sheetfed and heatset web / coldset web offset applications Substrate Electrochemically grained and anodized aluminium substrate 0.15 mm, 0.20 mm, 0.30 mm and 0.40 mm standard Gauge Please contact your local supplier of products from Kodak for size and gauge availability by region. Spectral sensitivity 800 - 850 nm Recommended: KODAK MAGNUS, TRENDSETTER, ACHIEVE, and LOTEM Platesetters Platesetter compatibility Other compatible platesetters: Screen PT-R Platesetters, Heidelberg Topsetter and Suprasetter Platesetters, and Luscher Xpose! Platesetters 90 - 130 mJ/cm2 with KODAK 400 xLo Chemistry System Laser energy required Dependent on imager type, configuration and resolution. 1 - 99% @ 450 lpi AM resolution Dependent upon capability of imaging device. 10-micron stochastic FM resolution Dependent upon imaging device capabilities and screening algorithms. For optimum FM performance, Kodak recommends KODAK STACCATO Screening on KODAK SQUARESPOT Imaging Technology Devices. Recommended: KODAK TI and T-HDX Plate Processors Processors For other approved processors, please contact your local supplier of products from Kodak. Processing solution KODAK 400 xLo Chemistry System Up to 350,000 impressions unbaked; 1,000,000+ baked; must be baked for UV Run length Dependent upon image resolution, press, press chemical, ink and paper conditions. Safelight None required - daylight handling Packaging Available in all standard format

GENERAL SPECIFICATIONS Technology 830 nm platesetter with KODAK SQUARESPOT Imaging Technology Load/unload systems Semi-automatic plate loading and unloading. PERFORMANCE SPECIFICATIONS Throughput at 2400 dpi1,2 for plate size 1,030 x 800 mm, portrait mode F speed = 11 plates per hour X speed = 19 plates per hour W speed = 31.2 plates per hour Resolution Standard: 2400/1200 dpi Optional: 2540/1270 dpi High-Resolution Options: 4800 or 5080 dpi Screening 450 lpi max line screen Optional: 20- or 25-micron KODAK STACCATO Screening Maximum plate size: around drum x along drum4 1,325 x 1,650 mm Minimum plate size: around drum x along drum4 394 x 394 mm Maximum image area: around drum x along drum 1,314.9 x 1,650 mm.

High-quality, long-run plate for sheet-fed, packaging, web, and all UV print applications Gauge 0.20, 0.30, and 0.40 mm Spectral sensitivity Resolution 1 to 99% @ 200 lpi and FM20 capable Up to 450 lpi is possible, dependent upon the capability of the imaging device. 800 – 850 nm RUN LENGTHS OF UP TO 400,000 IMPRESSIONS ON WEB PRESSES 1 to 99% @ 200 lpi and FM20 capable Up to 450 lpi is possible, depending upon the capability of the imaging device.

Physical & Material Specifications Base; Material: Electrochemically grained and anodized aluminum.Thickness: 0.15 mm, 0.20 mm, 0.25 mm, 0.30 mm, and 0.40 mm.Spectral Sensitivity: Peak absorption at 830 nm (Infrared laser diodes).Shelf Life: Typically 12 to 18 months when stored between 10°C and 30°C with relative humidity under 65%. Imaging & Processing Parameters: Exposure Energy: Standard range of 100 to 130 mJ/cm².Resolution: 1% - 99% at 150 to 250 lpi, with FM screen capability typically around 20 μ m.Developer Temperature: 22°C to 28°C.Developing Time: 25 to 35 seconds.

Kodak Trendsetter Q400 Thermal CtP Q400 Platesetter Standard: semi- automatic plate loading and unloading Auto Unload (optional): Semi automatic plate loading and automatic unloading to plate processor of stacker, automatic plate rotation Auto loader (optional): Automated plate loading & unloading of up to 40 plate without slip sheets (0.3 mm): automatic plate rotation Single Cassette unit (optional): automated plate loading and unloading of up to 120 plats 90.3 mm) with automated slip sheets removal, automatic plate rotation Throughput at 2400 dpi for plate size 724 x 838 mm: Standard and Auto Unload: F speed = 30 plates per hour X speed = 43 plates per hour Auto loader/SCU/MCU: F speed = 33 plates per hour X speed = 50 plates per hour W speed = 75 plates per hour

The KODAK ACHIEVE NEWS CTP Platesetter is a high-performance thermal Computer-to-Plate (CTP) system developed specifically for newspaper printing operations. It combines reliable thermal imaging technology with cost-effective automation to deliver consistent plate quality, enhanced productivity, and dependable performance for daily newspaper production. Powered by Kodak's advanced TH5 Thermal Imaging Technology, the system produces sharp, accurate images with excellent tonal stability and precise dot reproduction. This ensures high-quality newspaper printing with vibrant images, crisp text, and uniform print results across every production run. Designed to meet the needs of modern newspaper presses, the ACHIEVE NEWS Platesetter offers flexible automation options, including semi-automatic and fully automated plate handling systems. It can process up to 54 broadsheet plates or 25 panorama plates per hour, helping print facilities improve workflow efficiency while reducing manual intervention and operating costs. The energy-efficient design consumes minimal power during operation and supports a range of Kodak thermal printing plates, including process-free options that help reduce chemical usage and environmental impact. Its compact footprint, user-friendly operation, and remote monitoring capabilities make it an ideal solution for newspapers seeking reliable, high-quality, and cost-effective CTP production.

Kodak Trendsetter Q 2400 & Q3600 VVLF Thermal CtP
