flexo

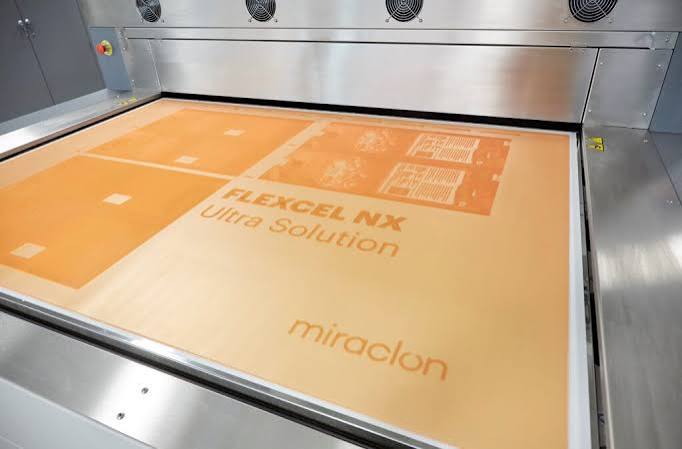

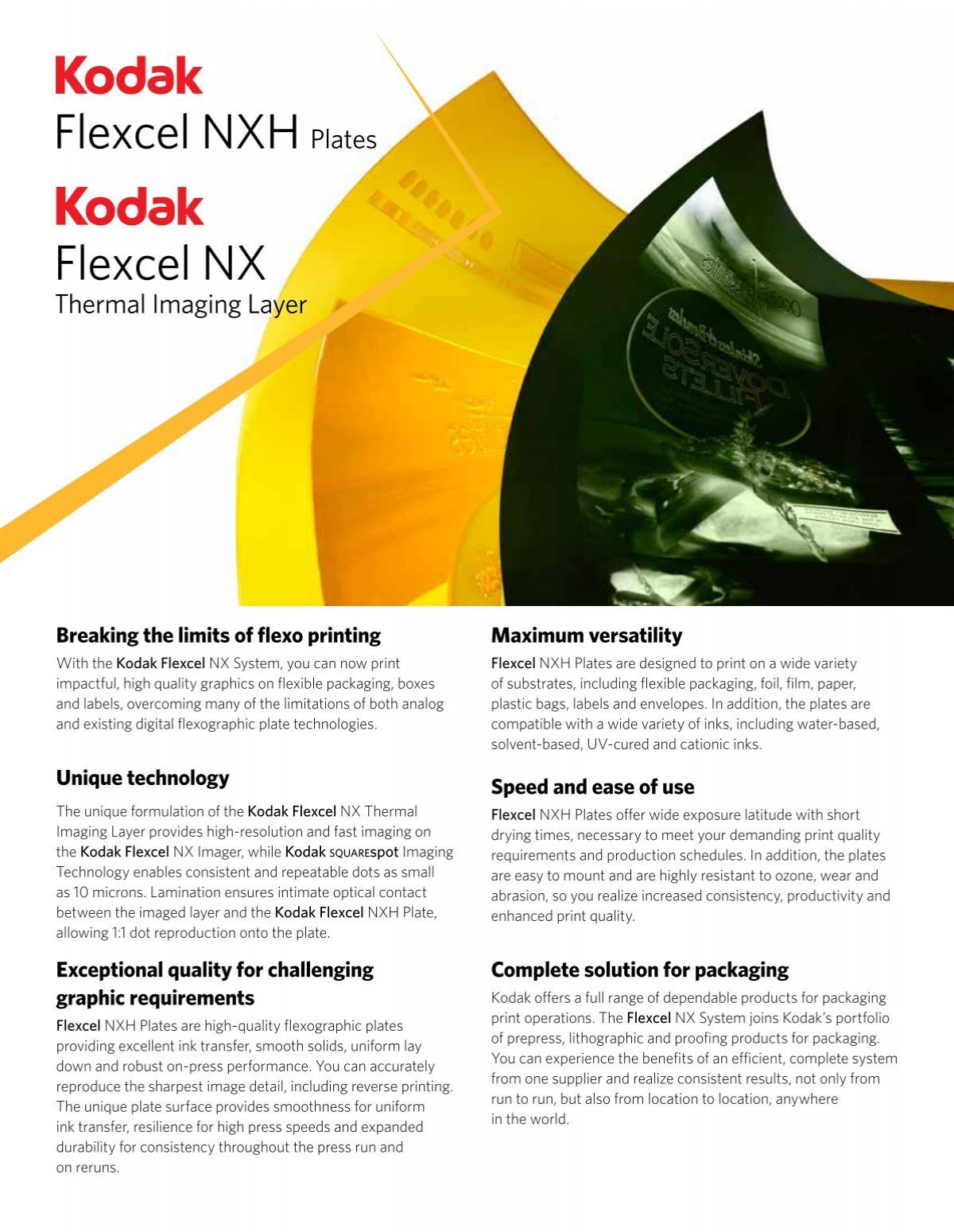

Flexcel NX Plates are reliable, high-quality flexographic plates designed to print on a wide variety of substrates. They offer superior ink transfer, smooth solids, uniform laydown, robust on-press performance and excellent ozone resistance.

Exposure unit for large-format flexographic plates up to 1320 x 2030 mm (52 x 80”) Pivot-hinged lid opens with pneumatic action for fast and safe access to three sides of the exposure bed Also available with vertical top lift for more convenient access with large plate handling Glass exposure bed eliminates the need to turn the plate during the two phases of exposure Includes cooled bed, lamp cooling, light integrator and PLC control 2 storage drawers

GLUNZ & JENSEN - FlexClean 1) Convenient and effective way to clean flexographic clichés 2) Available in 5 different sizes to accommodate different widths 3) Automatically adjusts roller pressure to accommodate different thicknesses 4) Works on solvent-based, water-based or UV inks with dedicated washout solutions 5) PLC display allows changes to programs, such as adjusting the transport speed or temperature 6) PLC display allows changes to programs, such as adjusting the transport speed or temperature 7) Suitable for cleaning all kinds of ink – solvent-based, waterbased or UV inks. 8) Self-adjusting roller pressure system for different thicknesses of plates. 9) Programmable and adjustable transport speed, with a plate receiver basket located at the end of the machine. 9) The washout section features a double filter for rinsing the cleaning solution and an automatic draining system.

GLUNZ & JENSEN - LetterPro 140C & 200C 1) A complete platemaking system especially designed for water-washable letterpress plates 2) Encompasses the entire plate handling process including plate exposure, wash-out, drying and post-exposure 3)All functions are controlled by an integrated microprocessor 4) The touch-membrane keypad with digital display provides easy access to all parameters 5) Ability to store nine different programs for individual plate types 6) Requires a minimum of maintenance and is the ideal solution for users with low-to-medium daily plate volume usage All in one" unit to expose, process, dry and post-expose, water based photopolymer plates, both film and metal-back. Equipment includes flat orbital 0.15mm brush and magnetic plate holder. Available accessories/options (see below): - Green adhesive plate holder - Soft 0.10mm brush Plate size (W x L): 35 x 50 cm., 14 x 19,5 inch. Crated Weights and Dimensions (LxWxH): 144 kg., 108 x 73 x 90cm. / 317 lbs., 42,5 x 28,7 x 35,4 inch.

GLUNZ & JENSEN - FlexMount 1) A floor standing manually operated plate mounter designed for mid-web applications 2) Pneumatically controlled tables help facilitate the ease of plate mounting 3) The two-camera system enlarges microdots and registration marks by 40 times 4) A digital LED display provides precise mounting locations The FlexMount 1320/1700 is the premium product in our FlexMount series. Semi-automaticlly controlled, it comes with a fixed mounting cylinder, along with a two-camera system magnifying the registration marks by 40 times. A fiber optic light beam assists the operator in positioning the plate, this saves valuable time in plate mounting. The fixed mounting cylinder is driven by a torque motor providing extremely high accuracy during rotation. The PLC control features a graphic user interface, where up to 2000 jobs can be registered. Data can be retrieved and uploaded as spread sheets. A unique Fast Mounting Strip assists the operator in smoothly navigating though the entire plate mounting process. An optional rubber roller system ensures quick and safe plate fixing, without air bubles.

GLUNZ & JENSEN - Flex Gauge S 1) Plate gauge measuring table for any plate size; controlled by a foot switch 2) Uses gravity in the measuring process, so there is no pressure on the plate 3) Possible to set a tolerance level, so an alarm triggers if the measurement is outside the tolerance level Plate thickness measuring table. Long arm to allow any plate size. Gauge finger by gravity (no pressure). Command by means of foot switch. Possibility of tolerance pre setting with alarm when measure out of tolerance. Crated Weights and Dimensions (LxWxH): 460 kg., 155 x 140 x 162 cm. / 1.012 lbs., 61 x 55 x 64 inch.

GLUNZ & JENSEN - FlexTrim 1750 1) Easily cut fiberglass flexographic sleeves in exact sizes 2) Has a basic design that does not require much space or maintenance and is very simple to operate 3) Significant waste reduction, as sleeves can be cut precisely in the desired sizes 4) The sleeve trimmer is very simple to operate and therefore does not require any special skills. The sleeve is quickly and easily mounted on the adaptor using compressed air. The correct sizes to be cut are easy to adjust as the machine is delivered with a measuring device. The knife is made especially for this type of work. It can be used on both sides and is covered with titanium. The sleeve trimmer is delivered with a speed regulation.

GLUNZ & JENSEN - Flex Mount 1280 1) A floor standing manually operated plate mounter designed for mid-web applications 2) Pneumatically controlled tables help facilitate the ease of plate mounting 3) The two-camera system enlarges microdots and registration marks by 40 times 4) A digital LED display provides precise mounting locations The FlexMount 850/1280 is a floor standing manually operated plate mounter designed for mid-web applications. It is equipped with a fixed cantilever shaft; exact shaft dimensions will be prepared based on your specific cylinder dimensions, up to a maximum size of 850mm/33.4” (850 model) and 1280mm/50.4” (1280 model) in width and 760mm (29.9”) in repeat. Pneumatically controlled tables help facilitate the ease of plate mounting. The two-camera system enlarges microdots and registration marks by 40 times magnification and displays them directly on a LCD monitor. A digital LED display provides precise mounting locations

GLUNZ & JENSEN - Flex in One 260 1) All-in-one integrated system 2) Includes exposure, processing, drying and finishing of plate sizes up to 660 x 810 mm (26 x 32”) 3) Ideal for the label/tag and narrow web markets 4) Focused on very high quality production of digital flexo plates 5) High UV-A output for the most demanding exposure needs Flex-In-OneTM is the new generation compact, all-in-one integrated system especially designed to house the entire flexographic platemaking process including exposure, processing, drying and finishing of plate sizes up to 660 x 810 mm (26 x 32”). Ideal for the label/tag and narrow web markets, this product has been fully designed to reflect the market demand focusing on very high quality production of digital flexo plates. It includes many features, such as: • High UV-A output for the most demanding exposure needs • 4 rotating brushes for high processing speed • Solid content measurement device with dosing pump to ensure optimal solvent condition during use • Insulated dryer drawers for a better temperature uniformity and reduced drying time

GLUNZ & JENSEN - Flex Gauge HD 1) Used for exact measuring of the plate thickness/gauge, ensuring a perfect plate quality before printing 2) The table has a good ergonomic height and is built with a heavy duty steel construction 3) The plate thickness indicator is very simple to operate and a foot pedal is used to activate the measuring device Table: 900 x 900 x 30 mm (35.4 x 35.4 x 1.2 inches) L x W x Thickness Table height: 1063 mm (42 inches) Foot pedal to activate the measuring device Adjustable leveling feet Mitytoyo digital indicator Mitutoyo Digimatic mini-processor DP-1VR with printing function Net weight 200 kg. / 441 lbs. Crated Weights and Dimensions (LxWxH): 250 kg., 130 x 130 x 167 cm. / 551 lbs., 51,5 x 51,5 x 65,7 inch.

GLUNS & JENSEN - FlexLine Pro 520 Compact 1) PLC display allows changes to programs, such as adjusting the transport speed or temperature 2) A modular and fully automated flexo platemaking system 3) Integrates the flexo plate washout processor with automated movement of the plate into dryers, light finishers and stacker holding slots 4) Minimised manual plate handling Modular concept to accommodate different workflow configurations; expandability as your business grows 5) Small footprint, covering all processing steps 6) Shorter drying times due to very efficient and accurate drying control 7)Highest drying capacity in the market – 9 individually controlled dryer slots 8)Outstanding temperature uniformity, providing minimal drying times 9)Highest stacking capacity in the market – up to 16 stacker slots 10)Plate resting function – programmable resting period between drying and light finishing 11)Plate inspection possibility prior to light finishing 12)Simplified mechanics with less wear points 13)Light finisher slides out for ease of lamp replacement

GLUNZ & JENSEN - 501 ETL Exposure 1) Exposure unit for large-format flexographic plates up to 1320 x 2030 mm (52 x 80”) 2) Pivot-hinged lid opens with pneumatic action for fast and safe access to three sides of the exposure bed 3) Also available with vertical top lift for more convenient access with large plate handling 4) Glass exposure bed eliminates the need to turn the plate during the two phases of exposure 5) Includes cooled bed, lamp cooling, light integrator and PLC control Exposure unit automatic pneumatic lid. Double side exposure with automatic shutter. Lamps temperature control and regulation. Light integrator for automatic UV variation compensation for back and main exposure. 2 storage drawers. Available accessories/options (see below): - Build-in punch - External punch Plate size (W x L): 132 x 203 cm. / 52 x 80 inch. Crated Weights and Dimensions (LxWxH): 1.800 kg., 332 x 230 x 150 cm. / 3,960 lbs., 131 x 91 x 59 inch.
