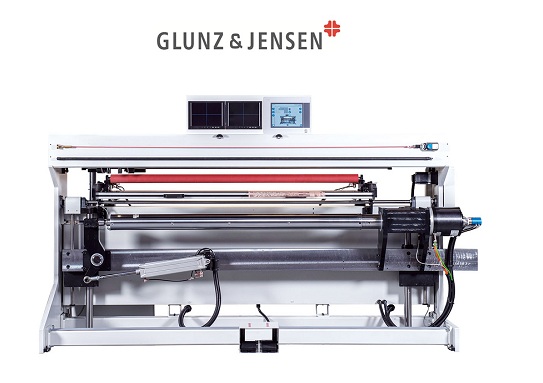

FlexMount 1320
R.S Marketing and Logistics are the dealers of Flexo Equipment's.
Plate Mounting machine with robust construction for position accuracy and repeatability. Floor-standing design. Dual camera system for quick positioning with LCD monitor, 2 monitors with 40 times magnification.
Programmable, digital read out displays the exact position to the operator. Operator panel, touch screen for easy job registration and job handling. Patented fiber optic halogen light spot projection on sleeve surface for quick pre-positioning Semi-automatic sleeve change and air management. Fast mounting button.
World-wide electrical configurable
Net weight 2.300 kg / 5, 071 lbs.
Press make/model and cylinder/sleeve diameters are required with each order.
Options available, please see below.
Repeat: 280-1016 mm. / inch.
Crated Weights and Dimensions (LxWxH):
2.500 kg., 360 x 160 x 220 cm. / 5.512 lbs., 142 x 63 x 86, 6 inch.
