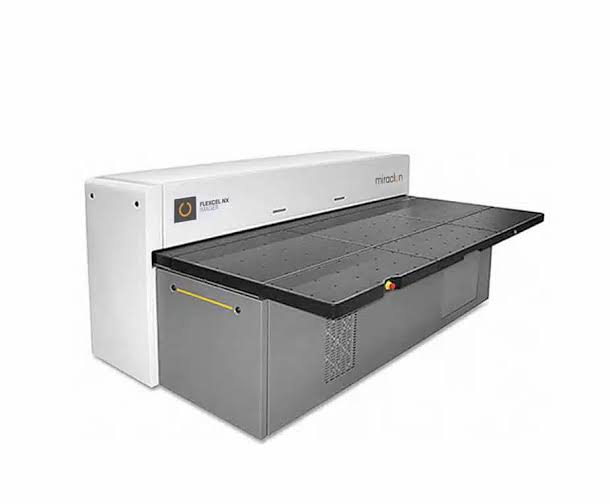

The Miraclon FLEXCEL NX System is an advanced digital flexographic platemaking solution engineered to deliver exceptional print quality, consistent color reproduction, and maximum production efficiency. Designed for modern flexographic printing, the system combines high-resolution imaging, patented lamination technology, and intelligent workflow software to produce highly accurate printing plates with outstanding repeatability. Specification Details; System ComponentsImager, Laminator, and FLEXCEL NX Central SoftwareImaging ResolutionStandard: 2400 dpi (Upgradable to 9600 x 4800 dpi)Imaging Speed12.5 m²/hr with DIGICAP NX Patterning appliedPlate Formats (Min / Max)Ranges from 610 x 762 mm (24 x 30 in) up to 1270 x 2032 mm (50 x 80 in) depending on configurationSupported Plate TypesNXH, NXUH, and NXC (compatible with FLEXCEL Prime Plates)Ink CompatibilityAqueous, solvent-based, UV-cured, and EB-cured inksScreeningUp to 300 lpi maximum linescreen (0.4% to 99.6%)Environmental40% - 60% relative humidity, non-condensing
