specifications SPDF Speed 35ppm printing resolution 1200 x 2400 dpi scan resolution 600 x 600 dpi paper capacity standard A3 520 Sheets x 2 Tray + 840 Sheets + 1230 sheets Bypass Tray 90 sheets Size 12.6 x 19 storage capacity; with 4 GB RAM, 128 GB SSD.

Specification SPDF Speed 30ppm paper capacity A3 standard 520 sheets x 2 - tray + 840 sheets + 1230 sheets Bypass Tray + 90 sheets Storage Space 4Gb Ram 128 GB SSD Size 12.6 x 19 print Resolution 1200x 2400 Dpi scan resolution 600 x 600 dpi

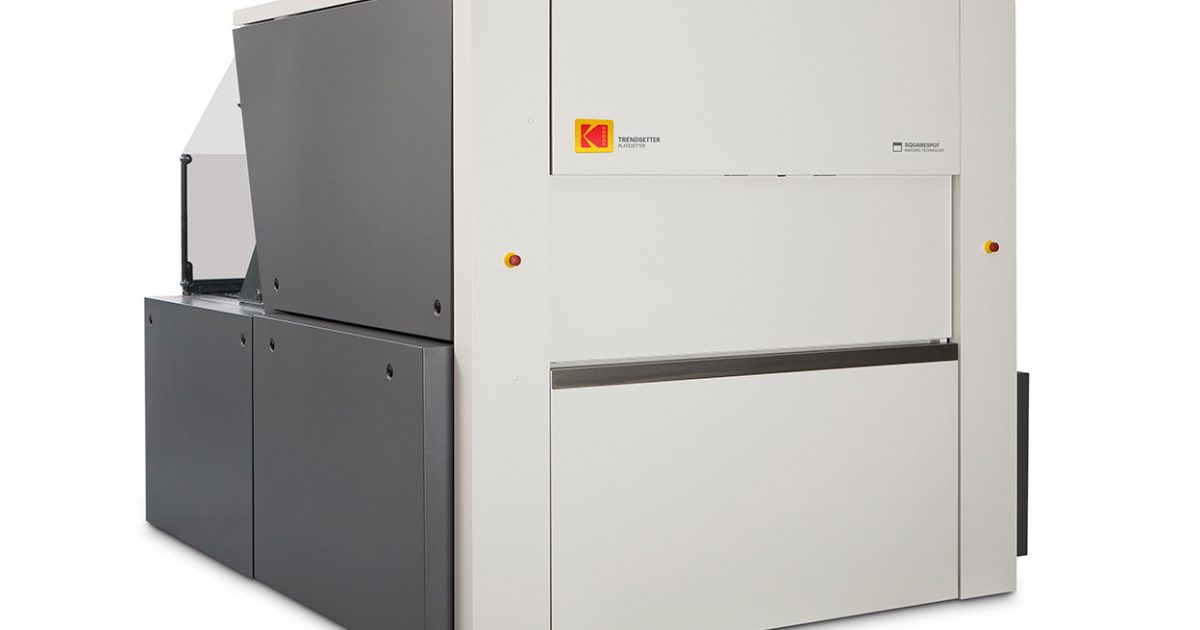

General specifications Technology In-line punch option1 830 nm platesetter with KODAK SQUARESPOT Imaging Technology, external drum • Up to 10 customized punch heads. Select from a list of punches qualified for TRENDSETTER Q400/Q800 Platesetters • Optional automatic punching is operated according to press profile selected from the KODAK Workflow • Punch is available on the front edge of the plate only • Automatic punch system adjustment for centering of plate Performance specifications Q400 Platesetter Q800 Platesetter Throughput at 2400 dpi2,3 plates per hour (pph) Repeatability Accuracy Standard and Auto Unload: F speed = 30 pph X speed = 43 pph Autoloader/SCU/MCU: F speed = 33 pph X speed = 50 pph Standard and Auto Unload: F speed = 22 pph X speed = 34 pph Autoloader/SCU/MCU: F speed = 24 pph X speed = 41 pph W speed = 66 pph For plate size 32.9921” x 40.5512” (838 x 1030 mm) (around x along drum) Registration Workflow connectivity W speed = 75 pph For plate size 32.9921” x 28.5039” (838 x 724 mm) (around x along drum) ± 5 microns between two consecutive exposures on the same plate left on the drum ± 20 microns between two plates imaged on the same device ± 25 microns between image and plate edge Standard KODAK Print Console with TIFF Downloader Software included; connects to KODAK PRINERGY Workflow and most third-party workflow systems. JDF/JMF Connectivity Option enables functionality in the Print Console software to provide job and device status. The optional KODAK Mobile CTP Control App lets you monitor CTP devices from your mobile device. Imaging specifications Q400 Platesetter Q800 Platesetter Resolution Standard: 2400/1200 dpi Optional: 2540/1270 dpi High-Resolution Options: 4800 or 5080 dpi Screening 450 lpi max line screen; Optional: 25-, 20- or 10-micron KODAK STACCATO Screening Maximum plate size: around x along drum4 32.9921” x 38.9764” (838 x 990 mm)5 Standard: 32.9921” x 45” (838 x 1,143 mm)5 Auto Unload/Autoloader/SCU/MCU: 32.9921” x 44.0157” (838 x 1,118 mm) Minimum plate size: around x along drum4 Standard: 10.5118” x 8.4646” (267 x 215 mm) Auto Unload/Autoloader/SCU/MCU: 12.9921” x 10.6299” (330 x 270 mm)6 Standard: 10.5118” x 8.4646” (267 x 215 mm) Auto Unload/Autoloader/SCU/MCU: 12.9921” x 10.6299” (330 x 270 mm)6 Maximum image area: around x along drum 32.5945” x 38.9764” (827.9 x 990 mm) Standard: 32.5945” x 45” (827.9 x 1,143 mm) Auto Unload/Autoloader/SCU/MCU: 32.5945” x 44.0157” (827.9 x 1,118 mm
