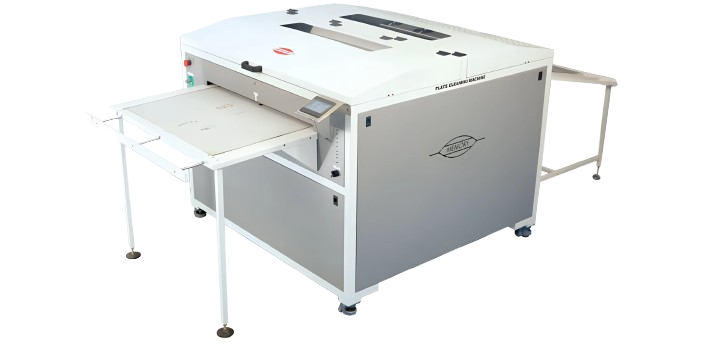

Memory“ Offset Plate Cleaning Machine is designed for efficient and fast Cleaning of ink from Ink from Offset Printing Plates. The machine is suitable for Sheet-fed offset presses where plates are stored for reprint jobs. Specifications: Plate Width Max: 840 mm Plate Length Min-Max: 250-1080 mm Plate Thickness: 0.15-0.40 mm Speed: 15-30 cms/min Chemical Tank Capacity: 2 tanks, 25 litres each Gum Tank Capacity: 5 ltrs Power: 5 KW/220 Volts/50 Hz Dimensions LxWxH: 2950x1440x1150 mm Net Weight: 500 kgs

GENERAL SPECIFICATIONS Technology 830 nm platesetter with KODAK SQUARESPOT Imaging Technology Load/unload systems Semi-automatic plate loading and unloading. PERFORMANCE SPECIFICATIONS Throughput at 2400 dpi1,2 for plate size 1,030 x 800 mm, portrait mode F speed = 11 plates per hour X speed = 19 plates per hour W speed = 31.2 plates per hour Resolution Standard: 2400/1200 dpi Optional: 2540/1270 dpi High-Resolution Options: 4800 or 5080 dpi Screening 450 lpi max line screen Optional: 20- or 25-micron KODAK STACCATO Screening Maximum plate size: around drum x along drum4 1,325 x 1,650 mm Minimum plate size: around drum x along drum4 394 x 394 mm Maximum image area: around drum x along drum 1,314.9 x 1,650 mm.

High-quality, long-run plate for sheet-fed, packaging, web, and all UV print applications Gauge 0.20, 0.30, and 0.40 mm Spectral sensitivity Resolution 1 to 99% @ 200 lpi and FM20 capable Up to 450 lpi is possible, dependent upon the capability of the imaging device. 800 – 850 nm RUN LENGTHS OF UP TO 400,000 IMPRESSIONS ON WEB PRESSES 1 to 99% @ 200 lpi and FM20 capable Up to 450 lpi is possible, depending upon the capability of the imaging device.
